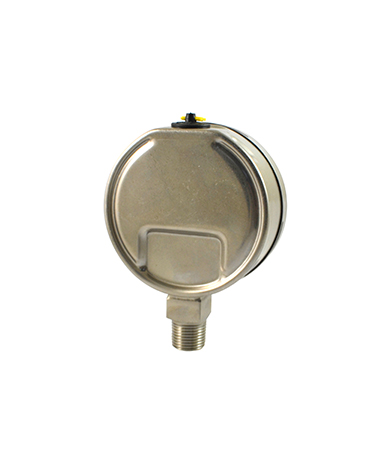

1421 Liquid filled capsule low pressure gauge

Designation

Stainless steel liquid filled series, DIN bayonet ring

Model

1421

Applications

For gaseous and dry, also corrosive and vibration media or in corrosive environment

Nominal size: (mm)

Ø(100, 150)

Scale ranges

0-25 to 600mbar

Accuracy class

1.6Ø(100, 150)

Pressure connection

1/2" Ø (100, 150)

Wetted parts

Stainless Steel

Case material

Stainless steel, DIN bayonet ring

Window

Instrument glass

IP class

IP 65

Options/notes

Lower, back entry, panel mount or surface mount
