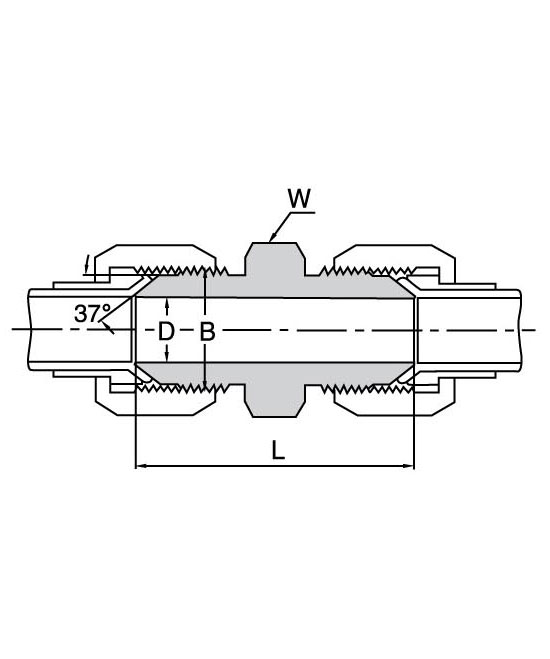

Tube fitting UH-S

tube outside

B

D

W

L

UNF

mm

UH-1/8

-

5/16-24

0.062

1.6

7/16

1.17

29.7

UH-3/16

-

3/8-24

0.125

3.2

7/16

1.23

31.2

UH-1/4

6

7/16-20

0.172

4.4

1/2

1.37

34.8

UH-5/16

8

1/2-20

0.234

6.0

9/16

1.37

34.8

UH-3/8

10

9/16-18

0.297

7.5

5/8

1.41

35.8

UH-1/2

12

3/4-16

0.391

9.9

13/16

1.62

41.1

UH-5/8

16

7/8-14

0.484

12.3

15/16

1.88

47.8

UH-3/4

18

1-1/16-12

0.609

15.5

1-1/8

2.16

54.9

UH-7/8

20

1-3/16-12

0.719

18.3

1-1/4

2.21

56.1

UH-1

25

1-5/16-12

0.844

21.5

1-3/8

2.25

57.2

UH-1-1/4

32

1-5/8-12

1.078

27.5

1-11/16

2.43

61.7

UH-1-1/2

38

1-7/8-12

1.312

33.0

2

2.75

69.8

UH-2

2-1/2-12

1.781

45.0

2-5/8

3.04

86.4
