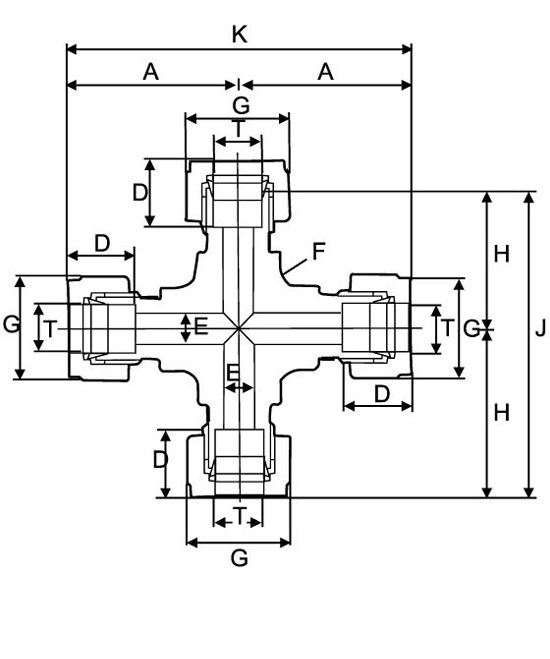

UNION CROSS (METRIC)
|
TUBE O.D. (mm) |
CATALOG NUMBER |
A |
D |
E |
F |
G |
H |
J |
K |
|
3 |
UCR-3-0 |
25.5 |
14.0 |
2.4 |
12 |
10 |
18.5 |
37 |
51.0 |
|
6 |
UCR-6-0 |
30.2 |
15.2 |
5 |
14 |
14 |
23 |
46 |
60.4 |
|
8 |
UCR-8-0 |
30.5 |
16.5 |
6 |
14 |
17 |
23 |
46 |
61.0 |
|
10 |
UCR-10-0 |
31.5 |
19.5 |
8 |
17 |
19 |
24 |
48 |
63.0 |
|
12 |
UCR-12-0 |
37.0 |
23.6 |
10 |
20 |
22 |
26 |
52 |
74.0 |
|
16 |
UCR-16-0 |
38.8 |
24.4 |
12 |
24 |
27 |
28.7 |
57.4 |
77.6 |
|
18 |
UCR-18-0 |
39.8 |
24.4 |
14 |
27 |
31 |
29.7 |
59.4 |
79.6 |
|
20 |
UCR-20-0 |
44.6 |
26 |
16 |
30 |
32 |
34.5 |
69 |
89.3 |
|
25 |
UCR-25-0 |
49.1 |
31.3 |
21 |
35 |
38 |
36.8 |
73.6 |
98.2 |
(FRACTIONAL)
|
1/8 |
UCR-01-0 |
25.5 |
14.0 |
2 |
12 |
10 |
18.5 |
37 |
51.0 |
|
3/16 |
UCR-015-0 |
25.5 |
14.0 |
3.5 |
12 |
10 |
18.5 |
37 |
51.0 |
|
1/4 |
UCR-02-0 |
30.2 |
15.2 |
5 |
14 |
14 |
23 |
46 |
60.4 |
|
5/16 |
UCR-025-0 |
29.9 |
16.2 |
6 |
14 |
17 |
22.4 |
44.7 |
59.7 |
|
3/8 |
UCR-03-0 |
31.5 |
18.8 |
8 |
17 |
19 |
24 |
48 |
63.0 |
|
1/2 |
UCR-04-0 |
37.0 |
23.6 |
10 |
22 |
22 |
26 |
52 |
74.0 |
|
5/8 |
UCR-05-0 |
38.8 |
24.4 |
12 |
24 |
27 |
28.7 |
57.4 |
77.6 |
|
3/4 |
UCR-06-0 |
39.9 |
26.0 |
15 |
27 |
30 |
29.7 |
59.4 |
79.8 |
|
7/8 |
UCR-07-0 |
44.7 |
26.0 |
18 |
30 |
32 |
34.5 |
69.0 |
89.4 |
|
1 |
UCR-08-0 |
49.0 |
31.2 |
21 |
35 |
38 |
36.8 |
73.6 |
58.0 |
