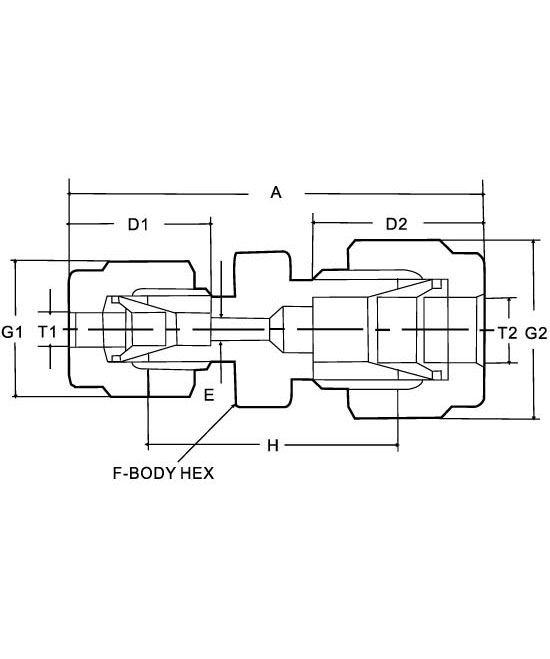

Tube fitting RU-S-2

TUBE

T1

O.D.

T2

CATALOG

NUMBER

A

D2

E

F

G1

G2

H

1/8

3/6

RU-015-01

36.6

12.7

2.3

12

11.11

12.70

23.4

1/8

1/4

RU-02-01

38.6

12.7

2.3

14

11.11

14.28

24.6

3/16

1/4

RU-02-015

39.4

13.7

3.0

14

12.70

14.28

25.4

1/8

5/16

RU-025-01

39.9

12.7

2.3

16

11.11

15.87

25.9

1/4

5/16

RU-025-02

42.2

15.2

4.8

16

14.28

15.87

27.4

1/8

3/8

RU-03-01

40.9

12.7

2.3

17

11.11

17.46

26.9

1/4

3/8

RU-03-02

43.2

15.2

4.8

17

14.28

17.46

28.4

5/16

3/8

RU-03-025

44.2

16.3

6.4

17

15.87

17.46

29.5

1/8

1/2

RU-04-01

45.2

12.7

2.3

22

11.11

22.22

28.4

1/4

1/2

RU-04-02

47.0

15.2

4.8

22

14.28

22.22

29.5

3/8

1/2

RU-04-03

48.5

16.8

7.0

22

17.46

22.22

31.0

3/8

5/8

RU-05-03

49.3

16.8

7.0

24

17.46

25.40

31.8

1/2

5/8

RU-05-04

52.1

22.9

10.0

24

22.22

25.40

31.8

1/4

3/4

RU-06-02

49.3

15.2

4.8

27

14.28

28.57

31.8

3/8

3/4

RU-06-03

50.8

16.8

7.0

27

17.46

28.57

33.3

1/2

3/4

RU-06-04

53.6

22.9

10.0

27

22.22

28.57

33.3

5/8

3/4

RU-06-05

53.6

24.4

12.0

27

25.40

28.57

33.3

1/2

1

RU-08-04

63.2

22.9

10.0

35

22.22

38.10

40.9

3/4

1

RU-08-06

62.7

24.4

16.0

35

28.57

38.10

40.4
