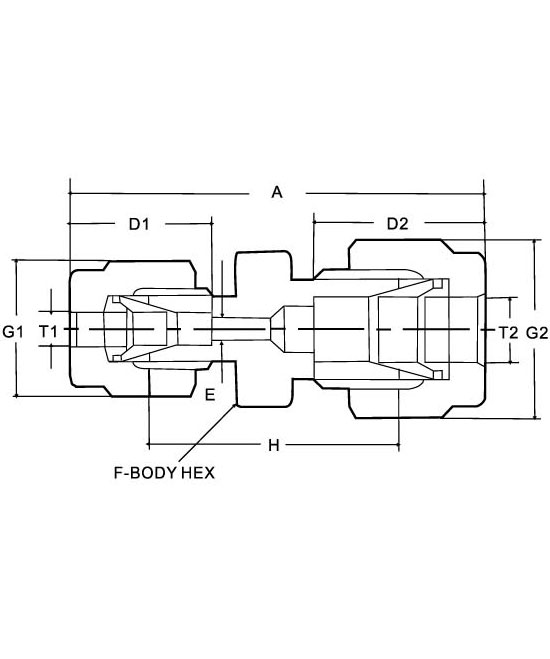

REDUCING UNION
(METRIC)
|
TUBE T1 |
O.D. T2 |
CATALOG NUMBER |
A |
D1 |
D2 |
E |
G1 |
G2 |
F |
H |
|
4 |
3 |
RU-4-3 |
38.1 |
13.7 |
12.9 |
2 |
12 |
10 |
12 |
25.0 |
|
4 |
6 |
RU-4-6 |
39.4 |
13.7 |
15.3 |
3 |
12 |
14 |
14 |
25.4 |
|
6 |
8 |
RU-6-8 |
42.3 |
15.3 |
16.2 |
5 |
14 |
17 |
14 |
27.4 |
|
6 |
10 |
RU-6-10 |
44.5 |
15.3 |
17.2 |
5 |
14 |
19 |
19 |
29.5 |
|
6 |
12 |
RU-6-12 |
47.3 |
15.3 |
22.8 |
5 |
14 |
22 |
22 |
29.5 |
|
8 |
10 |
RU-8-10 |
45.1 |
16.2 |
17.2 |
6 |
17 |
19 |
19 |
30.0 |
|
8 |
12 |
RU-8-12 |
47.8 |
16.2 |
22.8 |
6 |
17 |
22 |
22 |
30.2 |
|
10 |
12 |
RU-10-12 |
48.7 |
17.2 |
22.8 |
8 |
19 |
22 |
22 |
31.0 |
|
12 |
16 |
RU-12-16 |
52.0 |
22.8 |
24.4 |
10 |
22 |
27 |
24 |
31.8 |
|
12 |
18 |
RU-12-18 |
53.5 |
22.8 |
24.4 |
10 |
22 |
30 |
27 |
33.3 |
|
18 |
25 |
RU-18-25 |
61.0 |
24.4 |
31.3 |
15 |
30 |
38 |
35 |
38.6 |
|
20 |
25 |
RU-20-25 |
62.0 |
26.0 |
31.3 |
16 |
32 |
38 |
35 |
39.9 |
(FRACTIONAL)
|
TUBE T1 |
O.D. |
T2 |
CATALOG NUMBER |
A |
D1 |
D2 |
E |
F |
G1 |
G2 |
H |
| In | mm | ||||||||||
|
1/8 |
3.17 |
3 |
RU-3-01 |
35.2 |
12.8 |
15.3 |
2.3 |
12 |
11.11 |
11.11 |
22.1 |
|
1/8 |
3.17 |
4 |
RU-4-01 |
36.5 |
12.8 |
16.1 |
2.3 |
12 |
11.11 |
12.70 |
23.4 |
|
1/4 |
6.35 |
4 |
RU-4-02 |
39.4 |
15.3 |
16.1 |
2.3 |
16 |
14.28 |
12.70 |
25.4 |
|
1/8 |
3.17 |
6 |
RU-6-01 |
38.5 |
12.8 |
17.7 |
2.3 |
14 |
11.11 |
14.28 |
24.6 |
|
1/4 |
6.35 |
6 |
RU-6-02 |
41.0 |
15.8 |
17.7 |
4.8 |
14 |
14.28 |
14.28 |
26.2 |
|
5/16 |
7.93 |
6 |
RU-6-025 |
42.3 |
16.2 |
17.7 |
4.8 |
16 |
15.87 |
14.28 |
27.4 |
|
1/4 |
6.35 |
8 |
RU-8-02 |
42.3 |
15.3 |
18.6 |
4.8 |
16 |
14.28 |
15.87 |
27.4 |
|
1/8 |
3.17 |
10 |
RU-10-01 |
41.8 |
12.8 |
19.5 |
2.3 |
19 |
11.11 |
19.05 |
27.7 |
|
1/4 |
6.35 |
10 |
RU-10-02 |
44.5 |
15.3 |
19.5 |
4.8 |
19 |
14.28 |
19.05 |
29.5 |
|
5/16 |
7.93 |
10 |
RU-10-025 |
45.1 |
16.2 |
19.5 |
6.4 |
19 |
15.87 |
19.05 |
30.3 |
|
3/8 |
9.52 |
10 |
RU-10-03 |
45.9 |
16.9 |
19.5 |
7.0 |
19 |
17.46 |
19.05 |
31.0 |
|
5/16 |
7.93 |
12 |
RU-12-025 |
47.8 |
16.2 |
22.0 |
6.4 |
22 |
15.87 |
22.22 |
30.2 |
|
3/8 |
9.52 |
12 |
RU-12-03 |
48.4 |
16.9 |
22.0 |
7.0 |
22 |
17.46 |
22.22 |
31.0 |
|
1/2 |
12.70 |
12 |
RU-12-04 |
51.2 |
22.8 |
22.0 |
9.5 |
22 |
22.22 |
22.22 |
31.0 |
|
1/2 |
12.70 |
15 |
RU-15-04 |
52.0 |
22.8 |
22.0 |
10.0 |
24 |
22.22 |
25.40 |
31.8 |
|
5/8 |
15.87 |
16 |
RU-16-05 |
52.0 |
24.4 |
22.0 |
12.0 |
24 |
25.40 |
25.40 |
31.8 |
|
3/4 |
19.05 |
18 |
RU-18-06 |
53.5 |
24.4 |
22.0 |
15.0 |
27 |
28.57 |
30.16 |
33.3 |
|
3/4 |
19.05 |
20 |
RU-20-06 |
54.9 |
24.4 |
22.0 |
16.0 |
32 |
28.57 |
31.75 |
34.8 |
|
1 |
25.40 |
20 |
RU-20-08 |
60.3 |
31.2 |
26.4 |
16.0 |
35 |
38.10 |
31.75 |
38.0 |
|
1 |
25.40 |
22 |
RU-22-08 |
60.3 |
31.2 |
26.4 |
16.0 |
35 |
38.10 |
31.75 |
38.2 |
All dimensions are in mullimeters unless otherwise specified, only for reference subject to change.
