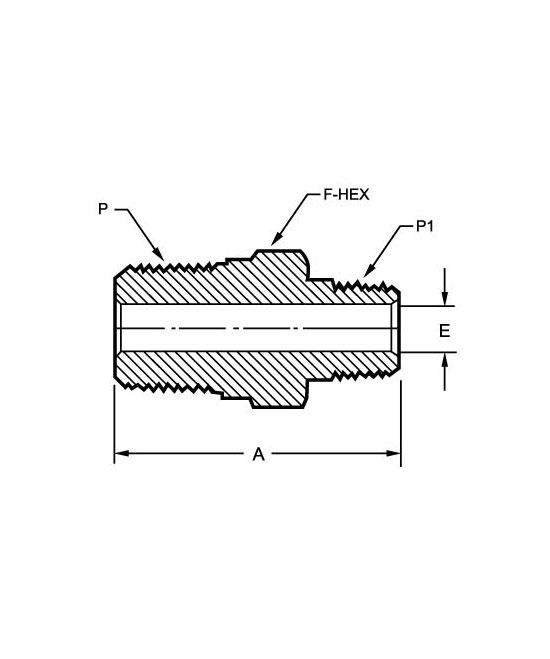

Tube fitting RHN-S

p

MALE

PT/NPT

SIZE

P1

MALE

PT/NPT

SIZE

CATALOG

NUMBER

A

E

MIN

OPENING

F

HEX

FLAT

1/4

1/8

RHN-02-01

29

5

14

3/8

1/8

RHN-03-01

31

5

17

3/8

1/4

RHN-03-02

32

6

17

1/2

1/8

RHN-04-01

35

5

22

1/2

1/4

RHN-04-02

38

6

22

1/2

3/8

RHN-04-03

39

8

22

3/4

1/4

RHN-06-02

41

6

27

3/4

3/8

RHN-06-03

42

8

27

3/4

1/2

RHN-06-04

45

10

27

1

1/2

RHN-08-04

51

10

35

1

3/4

RHN-08-06

53

15

35
