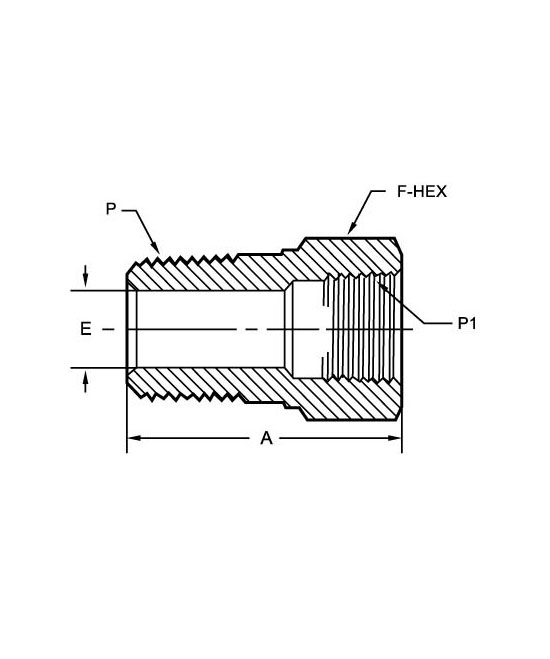

Tube fitting RB-S

p

MALE

PT/NPT

SIZE

P1

FEMALE

PT/NPT

SIZE

CATALOG

NUMBER

A

E

MIN

OPENING

F

HEX

FLAT

1/4

1/8

RB-02-01

20

7

14

3/8

1/8

RB-03-01

25

7

17

3/8

1/4

RB-03-02

25

11

17

1/2

1/8

RB-04-01

27

7

22

1/2

1/4

RB-04-02

27

11

22

1/2

3/8

RB-04-03

27

14

22

3/4

1/4

RB-06-02

30

11

27

3/4

3/8

RB-06-03

30

14

27

3/4

1/2

RB-06-04

30

19

27

1

1/4

RB-08-02

35

11

35

1

3/8

RB-08-03

35

14

35

1

1/2

RB-08-04

35

19

35

1

3/4

RB-08-06

35

22

35
