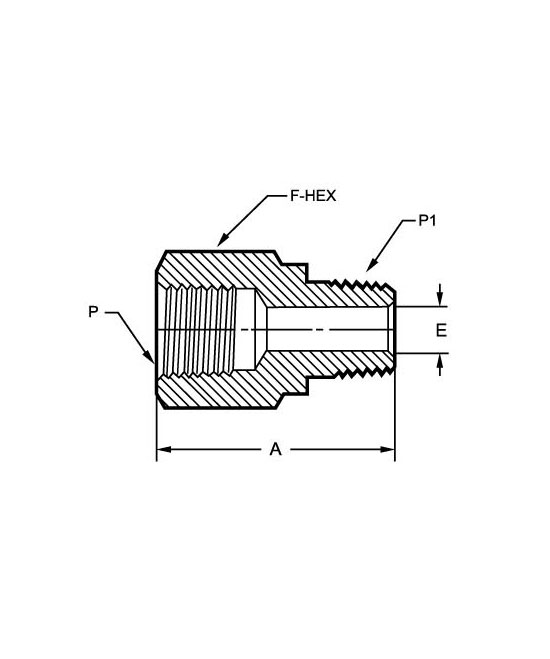

Tube fitting RA-S

p

MALE

PT/NPT

SIZE

P1

MALE

PT/NPT

SIZE

CATALOG

NUMBER

A

E

MIN

OPENING

F

HEX

FLAT

1/8

1/8

RA-01-01

27

5

14

1/4

1/8

RA-02-01

30

5

17

1/4

1/4

RA-02-02

33

6

17

3/8

1/8

RA-03-01

30

5

22

3/8

1/4

RA-03-02

33

6

22

3/8

3/8

RA-03-03

34

8

22

1/2

1/8

RA-04-01

35

5

27

1/2

1/4

RA-04-02

38

6

27

1/2

3/8

RA-04-03

39

8

27

1/2

1/2

RA-04-04

42

10

27

3/4

1/4

RA-06-02

40

6

32

3/4

3/8

RA-06-03

41

8

32

3/4

1/2

RA-06-04

44

10

32

1

1/4

RA-08-02

43

6

40

1

3/8

RA-08-03

44

8

40

1

1/2

RA-08-04

47

10

40

1

3/4

RA-08-06

49

15

40
