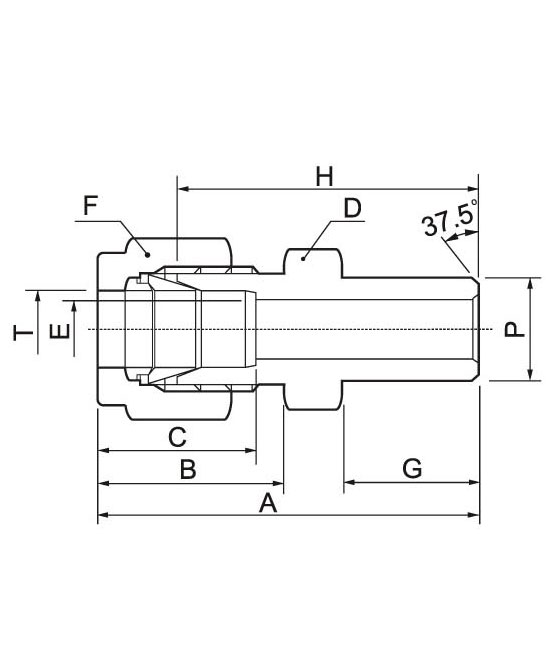

MALE PIPE WELD CONNECTOR
Connects fractional tube to pipe
|
T TUBE O.D. |
MALE PIPESIZI P |
CATALOG NUMBER |
A |
B |
C |
D |
E |
F |
G |
H |
|
| Nom. inch | mm | ||||||||||
|
1/8 |
1/8 |
10.29 |
ODBW-01-1P |
31.24 |
15.24 |
12.70 |
11.11 |
2.28 |
11.11 |
9.65 |
23.87 |
|
3/16 |
1/8 |
10.29 |
ODBW-015-1P |
31.24 |
16.00 |
13.71 |
11.11 |
3.04 |
12.70 |
9.65 |
24.63 |
|
1/4 |
1/8 |
10.29 |
ODBW-02-1P |
32.76 |
17.78 |
15.24 |
12.70 |
4.82 |
14.28 |
9.65 |
25.40 |
|
1/4 |
1/4 |
13.72 |
ODBW-02-2P |
37.84 |
17.78 |
15.24 |
14.28 |
4.82 |
14.28 |
14.22 |
30.48 |
|
5/16 |
1/8 |
10.29 |
ODBW-025-1P |
34.03 |
18.54 |
16.25 |
14.28 |
5.08 |
15.87 |
9.65 |
26.67 |
|
5/16 |
1/4 |
13.72 |
ODBW-025-2P |
38.60 |
18.54 |
16.25 |
14.28 |
6.35 |
15.87 |
14.22 |
31.24 |
|
3/8 |
1/4 |
13.72 |
ODBW-03-2P |
39.87 |
19.30 |
16.76 |
15.87 |
7.11 |
17.46 |
14.22 |
32.51 |
|
3/8 |
3/8 |
17.15 |
ODBW-03-3P |
39.87 |
19.30 |
16.76 |
17.46 |
7.11 |
17.46 |
14.22 |
32.51 |
|
3/8 |
1/2 |
21.34 |
ODBW-03-4P |
43.23 |
19.30 |
16.76 |
22.22 |
7.11 |
17.46 |
11.05 |
38.86 |
|
1/2 |
3/8 |
17.15 |
ODBW-04-3P |
43.43 |
21.84 |
22.86 |
20.64 |
10.41 |
22.22 |
14.22 |
33.27 |
|
1/2 |
1/2 |
21.34 |
ODBW-04-4P |
49.02 |
21.84 |
22.86 |
22.22 |
10.41 |
22.22 |
19.05 |
38.86 |
|
1/2 |
3/4 |
26.67 |
ODBW-04-6P |
50.54 |
21.84 |
22.86 |
26.98 |
10.41 |
22.22 |
19.05 |
40.38 |
|
5/8 |
1/2 |
21.34 |
ODBW-05-4P |
49.02 |
21.84 |
24.38 |
23.81 |
12.70 |
25.40 |
19.05 |
38.86 |
|
3/4 |
3/4 |
26.67 |
ODBW-06-6P |
50.54 |
21.84 |
24.38 |
26.98 |
15.74 |
28.58 |
19.05 |
40.38 |
|
1 |
1 |
33.40 |
ODBW-08-8P |
62.23 |
26.41 |
31.24 |
34.92 |
22.35 |
38.10 |
23.87 |
50.03 |
Connects metric tube to pipe
|
T TUBE O.D. |
MALE PIPESIZI P |
CATALOG NUMBER |
A |
B |
C |
D |
E |
F |
G |
H |
|
| Nom. inch | O.D.mm | ||||||||||
|
3 |
1/8 |
10.29 |
ODBW-3-1P |
29.7 |
15.3 |
12.9 |
12 |
2.4 |
12 |
9.7 |
23.1 |
|
4 |
1/8 |
10.29 |
ODBW-4-1P |
30.7 |
16.1 |
13.7 |
12 |
2.4 |
12 |
9.7 |
24.1 |
|
6 |
1/8 |
10.29 |
ODBW-6-1P |
32.8 |
17.7 |
15.3 |
14 |
4.8 |
14 |
9.7 |
25.4 |
|
6 |
1/4 |
13.72 |
ODBW-6-2P |
37.6 |
17.7 |
15.3 |
14 |
4.8 |
14 |
14.2 |
30.2 |
|
8 |
1/8 |
10.29 |
ODBW-8-1P |
34.2 |
18.6 |
16.2 |
15 |
5.1 |
16 |
9.7 |
26.7 |
|
8 |
1/4 |
13.72 |
ODBW-8-2P |
38.7 |
18.6 |
16.2 |
15 |
6.4 |
16 |
14.2 |
31.2 |
|
8 |
1/2 |
21.34 |
ODBW-8-4P |
44.8 |
18.6 |
16.2 |
22 |
6.4 |
16 |
19.0 |
37.3 |
|
10 |
1/4 |
13.72 |
ODBW-10-2P |
40.9 |
19.5 |
17.2 |
18 |
7.1 |
19 |
14.2 |
33.3 |
|
10 |
3/8 |
17.15 |
ODBW-10-3P |
40.1 |
19.5 |
17.2 |
18 |
7.9 |
19 |
14.2 |
32.5 |
|
10 |
1/2 |
21.34 |
ODBW-10-4P |
45.7 |
19.5 |
17.2 |
22 |
7.9 |
19 |
19.0 |
38.1 |
|
12 |
1/4 |
13.72 |
ODBW-12-2P |
43.4 |
22.0 |
22.8 |
22 |
7.1 |
22 |
14.2 |
33.3 |
|
12 |
3/8 |
17.15 |
ODBW-12-3P |
43.4 |
22.0 |
22.8 |
22 |
9.5 |
22 |
14.2 |
33.3 |
|
12 |
1/2 |
21.34 |
ODBW-12-4P |
48.2 |
22.0 |
22.8 |
22 |
9.5 |
22 |
19.0 |
38.1 |
|
14 |
3/8 |
17.15 |
ODBW-14-3P |
44.1 |
22.0 |
24.4 |
24 |
10.3 |
25 |
14.2 |
34.0 |
|
15 |
1/2 |
21.34 |
ODBW-15-4P |
49.0 |
22.0 |
24.4 |
24 |
11.9 |
25 |
19.0 |
38.9 |
|
16 |
1/2 |
21.34 |
ODBW-16-4P |
49.0 |
22.0 |
24.4 |
24 |
12.7 |
25 |
19.0 |
38.9 |
|
18 |
1/2 |
21.34 |
ODBW-18-4P |
50.5 |
22.0 |
24.4 |
27 |
13.5 |
30 |
19.0 |
40.4 |
ALL dimensions are in mullimeters unless otherwise specified, only for reference subject to change.
