Tube fitting MES-S

Contact Us DownLoad PDF

Details

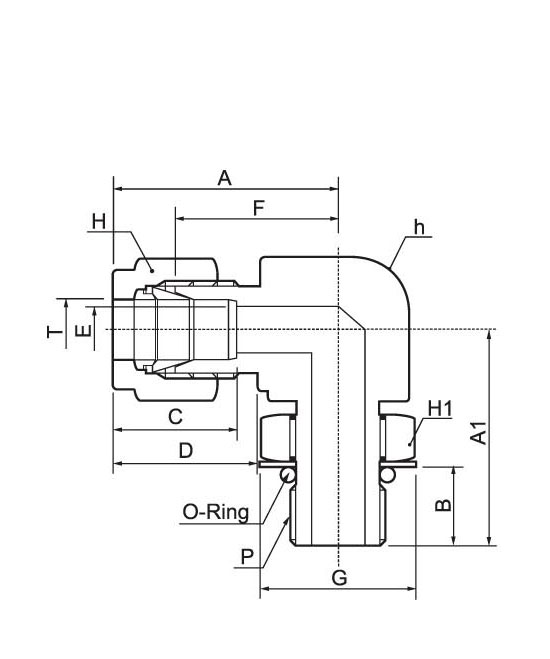

SAE MALE ELBOW

Connects fractional tube to SAE straight thread boss



T

TUBE

O.D.

STRAIGHT

THREAD

P(U)

CATALOG

NUMBER

A

A1

B

C

D

E

F

G

h

H

H1

O-Ring

Unifom

Size Number

1/4

7/16-20

MES-02-2U

28.44

28.44

9.90

15.24

17.78

4.82

21.08

16.51

12.70

14.28

14.28

-904

5/16

1/2-20

MES-025-2.5

30.22

29.46

9.90

16.25

18.54

5.84

22.86

18.28

14.28

15.87

15.87

-905

3/8

9/16-18

MES-03-3

32.00

32.25

11.17

16.76

19.30

7.11

24.63

20.06

15.87

17.46

17.46

-906

3/8

3/4-16

MES-03-4

34.79

37.84

12.70

16.76

19.30

7.11

27.43

25.65

20.64

17.46

22.22

-908

1/2

3/4-16

MES-04-4

37.59

37.84

12.70

22.86

21.84

10.41

27.43

25.65

20.64

22.22

22.22

-908

5/8

7/8-14

MES-05-4.5

39.62

43.43

14.22

24.38

21.84

12.70

29.46

29.46

25.40

25.40

25.40

-910

3/4

1-3/16-12

MES-07-7

43.18

50.54

16.76

25.90

21.84

18.28

33.02

40.38

31.75

31.75

34.92

-914

7/8

1-1/16-12

MES-06-6

41.40

48.76

16.76

24.38

21.84

15.74

31.24

36.57

26.98

28.57

31.75

-912

1

1-5/16-12

MES-08-8

50.54

53.59

16.76

31.24

26.41

22.35

38.35

43.94

34.92

38.10

38.10

-916



All dimensions are in mullimeters unless otherwise specified, only for reference subject to change.
