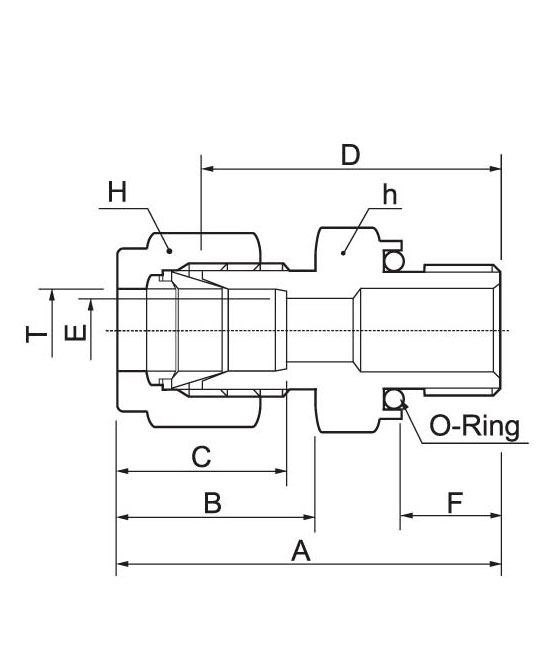

Tube fitting MCOS-S

T

TUBE

O.D.

STRAIGHT

THREAD

T(U)

CATALOG

NUMBER

A

B

C

D

E

F

G

H

O-Ring

Unifom

Size Number

1/8

5/16-20

MCOS-01-1U

32.76

15.24

12.70

14.28

2.28

11.11

26.16

8.63

-011

3/16

3/8-24

MCOS-015-1.5U

34.29

16.00

13.71

15.87

3.04

12.70

27.68

9.65

-012

1/4

7/16-20

MCOS-02-2U

38.35

17.78

15.24

19.05

4.82

14.28

30.98

10.41

-111

5/16

1/2-20

MCOS-025-2.5U

40.64

18.54

16.25

22.22

6.35

15.87

33.27

11.17

-112

3/8

9/16-18

MCOS-03-3U

42.41

19.30

16.76

23.81

7.11

17.46

35.05

11.93

-113

1/2

3/4-16

MCOS-04-4U

45.97

21.84

22.86

28.57

10.41

22.22

35.81

11.93

-116

3/4

1-1/16-12

MCOS-06-6U

52.32

21.84

24.38

38.10

15.74

28.58

42.16

14.22

-215

1

1-5/16-12

MCOS-08-8U

58.16

26.41

31.24

44.45

22.35

38.10

45.97

14.22

-219
