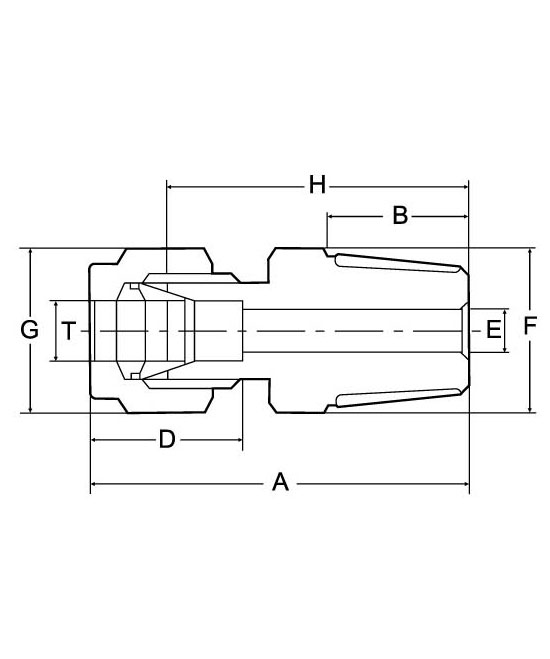

MALE CONNECTOR (METRIC)
|
T TUBE O.D. |
PT-NPT MALE PIPE SIZE |
CATALOG NUMBER |
A |
B |
D |
E |
F |
G |
H |
|
2 |
1/8 |
MC-2-1 |
30.8 |
10 |
12.9 |
1 |
10 |
10 |
24.2 |
|
3 |
1/8 |
MC-3-1 |
30.8 |
10 |
12.9 |
2 |
10 |
10 |
24.2 |
|
3 |
1/4 |
MC-3-2 |
34.4 |
13 |
12.9 |
2 |
14 |
10 |
27.8 |
|
4 |
1/8 |
MC-4-1 |
31.5 |
10 |
13.7 |
3 |
10 |
12 |
24.9 |
|
4 |
1/4 |
MC-4-2 |
35.1 |
13 |
13.7 |
3 |
14 |
12 |
28.5 |
|
4 |
3/8 |
MC-4-3 |
37.1 |
14 |
13.7 |
3 |
17 |
12 |
30.5 |
|
4 |
1/2 |
MC-4-4 |
41.1 |
17 |
13.7 |
3 |
22 |
12 |
34.5 |
|
6 |
1/8 |
MC-6-1 |
33.1 |
10 |
15.3 |
5 |
14 |
14 |
25.7 |
|
6 |
1/4 |
MC-6-2 |
36.7 |
13 |
15.3 |
5 |
14 |
14 |
29.3 |
|
6 |
3/8 |
MC-6-3 |
38.2 |
14 |
15.3 |
5 |
17 |
14 |
30.8 |
|
6 |
1/2 |
MC-6-4 |
42.7 |
17 |
15.3 |
5 |
22 |
14 |
35.3 |
|
8 |
1/8 |
MC-8-1 |
34.5 |
10 |
16.2 |
5 |
14 |
17 |
27.0 |
|
8 |
1/4 |
MC-8-2 |
37.5 |
13 |
16.2 |
6 |
14 |
17 |
30.0 |
|
8 |
3/8 |
MC-8-3 |
39.1 |
14 |
16.2 |
6 |
17 |
17 |
31.6 |
|
8 |
1/2 |
MC-8-4 |
43.6 |
17 |
16.2 |
6 |
22 |
17 |
36.1 |
|
10 |
1/8 |
MC-10-1 |
36.6 |
10 |
17.2 |
5 |
19 |
19 |
29.0 |
|
10 |
1/4 |
MC-10-2 |
39.7 |
13 |
17.2 |
6 |
19 |
19 |
32.1 |
|
10 |
3/8 |
MC-10-3 |
40.7 |
14 |
17.2 |
8 |
19 |
19 |
33.1 |
|
10 |
1/2 |
MC-10-4 |
44.5 |
17 |
17.2 |
8 |
22 |
19 |
36.9 |
|
10 |
3/4 |
MC-10-6 |
48.0 |
19 |
17.2 |
8 |
27 |
19 |
40.4 |
|
12 |
1/8 |
MC-12-1 |
39.1 |
10 |
22.8 |
5 |
22 |
22 |
29.0 |
|
12 |
1/4 |
MC-12-2 |
42.2 |
13 |
22.8 |
6 |
22 |
22 |
32.1 |
|
12 |
3/8 |
MC-12-3 |
43.2 |
14 |
22.8 |
8 |
22 |
22 |
33.1 |
|
12 |
1/2 |
MC-12-4 |
47.0 |
17 |
22.8 |
10 |
22 |
22 |
36.9 |
|
12 |
3/4 |
MC-12-6 |
50.5 |
19 |
22.8 |
10 |
27 |
22 |
40.4 |
|
12 |
1 |
MC-12-8 |
55.3 |
22 |
22.8 |
10 |
34 |
22 |
45.2 |
|
14 |
3/8 |
MC-14-3 |
43.9 |
14 |
24.4 |
8 |
24 |
27 |
33.8 |
|
14 |
1/2 |
MC-14-4 |
47.0 |
17 |
24.4 |
10 |
24 |
27 |
36.9 |
|
14 |
3/4 |
MC-14-6 |
50.5 |
19 |
24.4 |
10 |
27 |
27 |
40.4 |
|
15 |
3/8 |
MC-15-3 |
47.0 |
14 |
24.4 |
8 |
24 |
27 |
33.8 |
|
15 |
1/2 |
MC-15-4 |
49.0 |
17 |
24.4 |
10 |
24 |
27 |
36.9 |
|
15 |
3/4 |
MC-15-6 |
50.5 |
19 |
24.4 |
10 |
27 |
27 |
40.4 |
|
16 |
3/8 |
MC-16-3 |
43.9 |
14 |
24.4 |
8 |
24 |
27 |
33.8 |
|
16 |
1/2 |
MC-16-4 |
47.0 |
17 |
24.4 |
10 |
24 |
27 |
36.9 |
|
16 |
3/4 |
MC-16-6 |
50.5 |
19 |
24.4 |
12 |
27 |
27 |
40.4 |
|
18 |
3/8 |
MC-18-3 |
45.5 |
14 |
24.4 |
8 |
27 |
30 |
35.4 |
|
18 |
1/2 |
MC-18-4 |
48.5 |
17 |
24.4 |
10 |
27 |
30 |
38.4 |
|
18 |
3/4 |
MC-18-6 |
50.5 |
19 |
24.4 |
15 |
27 |
30 |
40.4 |
|
18 |
1 |
MC-18-8 |
55.3 |
22 |
24.4 |
15 |
34 |
30 |
45.2 |
|
20 |
1/2 |
MC-20-4 |
50.3 |
17 |
26.0 |
10 |
30 |
32 |
40.2 |
|
20 |
3/4 |
MC-20-6 |
52.3 |
19 |
26.0 |
15 |
30 |
32 |
42.2 |
|
22 |
1/2 |
MC-22-4 |
50.3 |
17 |
26.0 |
10 |
30 |
32 |
40.2 |
|
22 |
3/4 |
MC-22-6 |
52.3 |
19 |
26.0 |
16.5 |
30 |
32 |
42.2 |
|
22 |
1 |
MC-22-8 |
55.2 |
22 |
26.0 |
16.5 |
34 |
32 |
45.1 |
|
25 |
1/2 |
MC-25-4 |
55.5 |
17 |
31.3 |
10 |
34 |
38 |
43.2 |
|
25 |
3/4 |
MC-25-6 |
57.5 |
19 |
31.3 |
16.5 |
34 |
38 |
45.2 |
|
25 |
1 |
MC-25-8 |
60.4 |
22 |
31.3 |
20 |
34 |
38 |
48.1 |
All dimensions are in mullimeters unless otherwise specified, only for reference subject to change.
