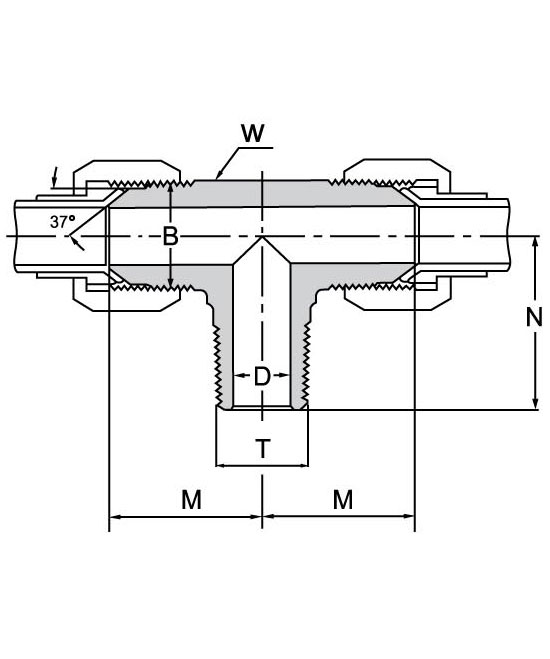

Tube fitting MBTH-S

tube outside inch

B

UNF

T

NPT/PT

D

W

M

N

inch

MBTH-1/8

-

5/16-24

1/8

0.062

1.6

7/16

0.77

19.6

0.72

18.3

MBTH-3/16

-

3/8-24

1/8

0.125

3.2

1/2

0.83

21.1

0.72

18.3

MBTH-1/4

6

7/16-20

1/8

0.172

4.4

1/2

0.89

22.6

0.78

19.8

MBTH-1/4

6

7/16-20

1/4

0.172

4.4

5/8

1.06

26.9

1.09

27.7

MBTH-5/16

8

1/2-20

1/8

0.190

4.8

5/8

0.95

24.1

0.78

19.8

MBTH-5/16

8

1/2-20

1/4

0.234

6.0

5/8

1.06

26.9

1.09

27.7

MBTH-3/8

10

9/16-18

1/8

0.190

4.8

5/8

1.06

26.9

0.9

22.8

MBTH-3/8

10

9/16-18

1/4

0.280

7.1

5/8

1.06

26.9

1.09

27.7

MBTH-3/8

10

9/16-18

3/8

0.297

7.5

13/16

1.14

29.0

1.22

31.0

MBTH-3/8

10

9/16-18

1/2

0.297

7.5

15/16

1.23

31.2

1.47

37.3

MBTH-1/2

12

3/4-16

1/4

0.280

7.1

15/16

1.25

31.8

1.22

31.0

MBTH-1/2

12

3/4-16

3/8

0.380

9.5

15/16

1.25

31.8

1.22

31.0

MBTH-1/2

12

3/4-16

1/2

0.391

9.9

15/16

1.33

33.7

1.47

37.3

MBTH-1/2

12

3/4-16

3/4

0.391

9.9

1-1/8

1.42

36.0

1.59

40.4

MBTH-5/8

16

7/8-14

3/8

0.380

9.5

15/16

1.45

36.8

1.30

33.0

MBTH-5/8

16

7/8-14

1/2

0.470

11.9

15/16

1.45

36.8

1.47

37.3

MBTH-5/8

16

7/8-14

3/4

0.484

12.3

1-1/8

1.53

38.9

1.59

40.4

MBTH-3/4

18

1-1/16-12

1/2

0.470

11.9

1-1/8

1.66

41.0

1.59

40.4

MBTH-3/4

18

1-1/16-12

3/4

0.609

15.5

1-1/8

1.66

41.0

1.59

40.4

MBTH-7/8

20

1-3/16-12

3/4

0.719

18.3

1-3/8

1.73

43.9

1.69

42.9

MBTH-1

25

1-5/16-12

3/4

0.719

18.3

1-3/8

1.81

46.0

1.78

45.2

MBTH-1

25

1-5/16-12

1

0.844

21.5

1-3/8

1.81

46.0

1.97

50.0

MBTH-1-1/4

32

1-5/8-12

1

0.844

21.5

1-11/16

2.06

52.3

2.35

59.6

MBTH-1-1/4

32

1-5/8-12

1-1/4

1.078

27.5

1-11/16

2.06

52.3

2.38

60.5

MBTH-*1-1/2

38

17/8-12

1-1/2

1.312

33.0

*2

2.33

59.2

2.64

67.1

MBTH-*2

17/8-12

2

1.781

45.0

*2-5/8

3.06

77.7

3.0

76.2
