Tube fitting HUB-W-S

parts number

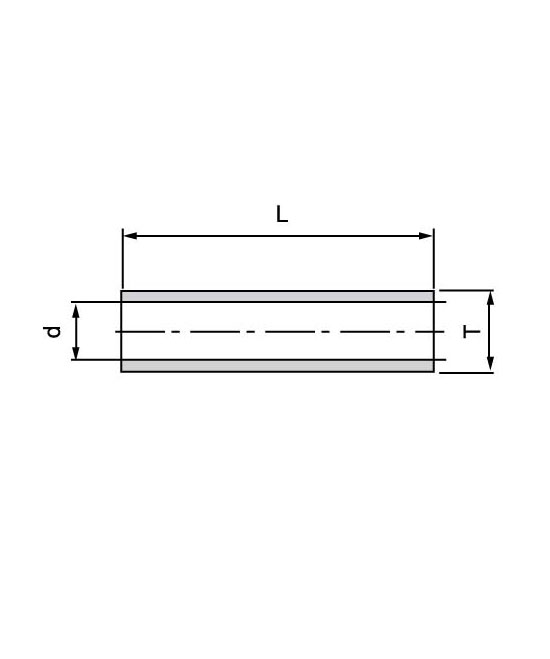

L

d

T

tube outside diameter

thread width

parts number

mm

inch

dmm

inch

inch

inch

mm

H-UB-1/4-W

24.30

0.96

4.56

0.18

1/4"

0.035

-

H-UB-3/8-W

23.88

0.94

7.73

0.30

3/8"

0.035

-

H-UB-1/2-W

23.37

0.92

10.20

0.40

1/2"

0.049

-

H-UB-3/4-W

23.37

0.92

15.81

0.62

3/4"

0.065

-

H-UB-1-W

29.72

1.17

22.16

0.87

1"

0.065

-
