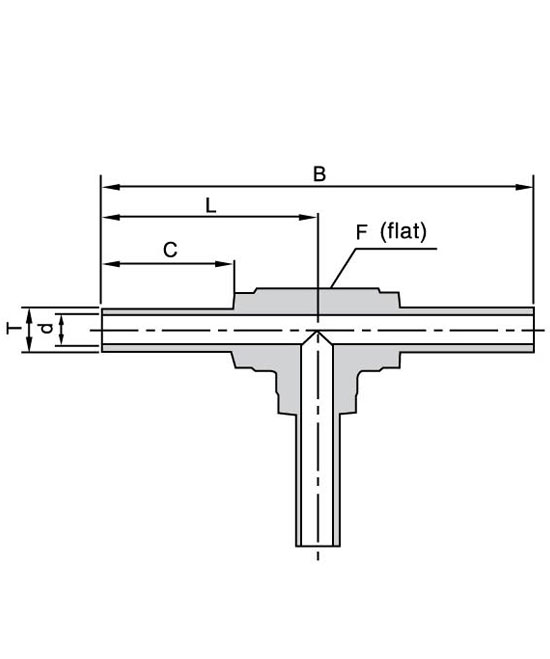

Tube fitting HTW-W-S

parts number

L

B

d

C

F

T

tube outside diameter

thread

mm

inch

mm

inch

mm

inch

mm

inch

inch

inch

mm

inch

mm

H-EW-1/4-W

31.24

1.23

62.48

2.46

4.56

0.18

19.05

0.75

7/16

1/4"

0.035

-

H-EW-3/8-W

30.48

1.20

60.96

2.40

7.73

0.30

19.05

0.75

7/16

3/8"

0.035

-

H-EW-1/2-W

34.04

1.34

68.08

2.68

10.20

0.40

19.05

0.75

11/16

1/2"

0.049

-

H-EW-1/2-WW.T =0.065

34.04

1.34

68.08

2.68

9.46

0.37

19.05

0.75

11/16

1/2"

0.065

-

H-EW-1-WW.T.=0.065

47.00

1.85

94.00

3.70

16.5

0.87

19.05

0.75

1-3/8

3/4"

0.065

-

H-EW-1-WW.T.=0.120

47.00

1.85

94.00

3.70

22.16

0.76

19.05

0.75

1-3/8

1"

0.120

-

H-EW-6M-W

31.24

1.23

62.48

2.46

4.00

0.16

19.05

0.75

7-16

1"

6MM

-

1.00

H-EW-8MM-W

30.20

1.23

60.96

2.40

6.00

0.24

19.05

0.75

7-16

8MM

-

1.00

H-EW-10MM-W

34.00

1.34

60.96

2.40

8.00

0.39

19.05

0.75

11/16

10MM

-

1.00

H-EW-12MM-W

34.00

1.34

68.08

2.68

10.00

0.31

19.05

0.75

11/16

12MM

-

1.00
