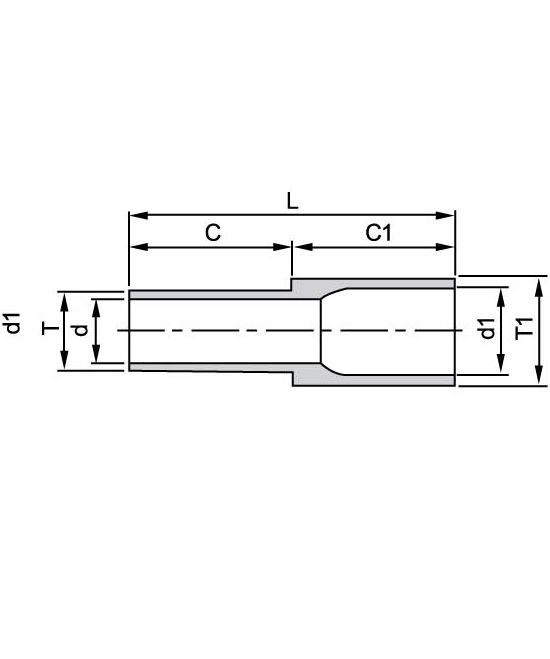

HRW-W AW REDUCER (Without shoulder)
|
parts number
|
L |
d1 |
d |
C1 |
C |
T1 tube outside diameter |
thread width (T1) |
T tube outside diameter |
thread width (T1) |
|||||||||
|
mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
|
|
H-RW-1/4x1/8 |
38.1 |
1.50 |
4.56 |
0.18 |
1.86 |
0.07 |
19.05 |
0.75 |
19.05 |
0.75 |
1/4 |
|
0.035 |
|
1/8 |
|
0.028 |
|
|
H-RW-3/8x1/4-W |
38.1 |
1.50 |
7.73 |
0.30 |
4.56 |
0.18 |
19.05 |
0.75 |
19.05 |
0.75 |
3/8 |
|
0.035 |
|
1/4 |
|
0.035 |
|
|
H-RW-1/2x1/4-W |
38.1 |
1.50 |
10.20 |
0.40 |
4.56 |
0.18 |
19.05 |
0.75 |
19.05 |
0.75 |
1/2 |
|
0.049 |
|
1/4 |
|
0.035 |
|
|
H-RW-1/2x3/8-W |
38.1 |
1.50 |
10.20 |
0.40 |
7.73 |
0.30 |
19.05 |
0.75 |
19.05 |
0.75 |
1/2 |
|
0.049 |
|
3/8 |
|
0.035 |
|
|
H-RW-1x1/2-WT.065x0.49 |
40.46 |
1.59 |
22.16 |
0.87 |
10.26 |
0.40 |
19.05 |
0.75 |
19.05 |
0.75 |
1 |
|
0.065 |
|
1/2 |
|
0.049 |
|
|
H-RW-8MMX6MM |
38.1 |
1.50 |
6.00 |
0.24 |
4.00 |
0.16 |
19.05 |
0.75 |
19.05 |
0.75 |
|
8MM |
|
1.00 |
|
6MM |
|
1.00 |
|
H-RW-10MMx6MM |
38.1 |
1.50 |
8.00 |
0.31 |
4.00 |
0.16 |
19.05 |
0.75 |
19.05 |
0.75 |
|
10MM |
|
1.00 |
|
6MM |
|
1.00 |
|
H-RW-10MMx8MM |
38.1 |
1.50 |
8.00 |
0.31 |
6.00 |
0.24 |
19.05 |
0.75 |
19.05 |
0.75 |
|
10MM |
|
1.00 |
|
8MM |
|
1.00 |
|
H-RW-12MMx6MM |
38.1 |
1.50 |
10.00 |
0.39 |
4.00 |
0.16 |
19.05 |
0.75 |
19.05 |
0.75 |
|
12MM |
|
1.00 |
|
6MM |
|
1.00 |
|
H-RW-12MMx8MM |
38.1 |
1.50 |
10.00 |
0.39 |
6.00 |
0.24 |
19.05 |
0.75 |
19.05 |
0.75 |
|
12MM |
|
1.00 |
|
8MM |
|
1.00 |
|
H-RW-12MMx10MM |
38.1 |
1.50 |
10.00 |
0.39 |
8.00 |
0.31 |
19.05 |
0.75 |
19.05 |
0.75 |
|
12MM |
|
1.00 |
|
12MM |
|
1.00 |
