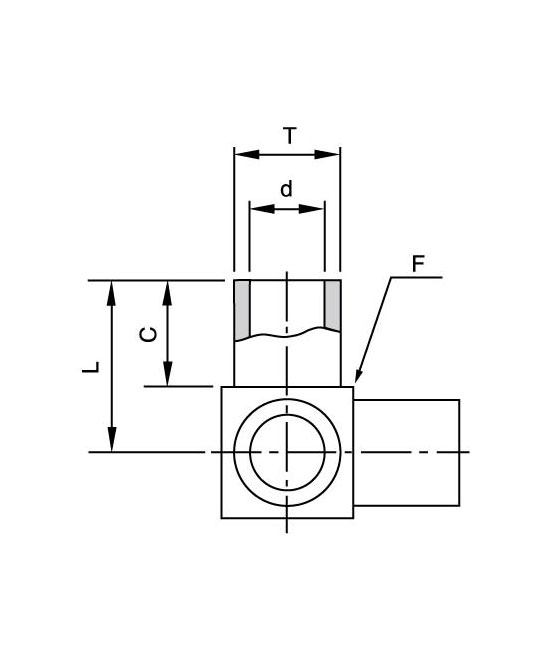

Tube fitting HMTB-S

parts number

L

d

C

F

T

tube outside diameter

thread

width

mm

inch

mm

inch

mm

inch

inch

inch/mm

inch

mm

H-MTB-1/8

10.33

0.41

1.86

0.07

6.35

0.25

5/16

1/8"

0.028

-

H-MTB-1/4

10.33

0.41

4.56

0.18

6.35

0.25

5/16

1/4"

0.035

-

H-MTB-3/8

11.93

0.47

7.73

0.30

6.35

0.25

7/16

3/8"

0.035

-

H-MTB-1/2

13.53

0.53

10.2

0.40

6.35

0.25

9/16

1/2"

0.049

-

H-MTB^MM

10.33

0.41

4.00

0.16

6.35

0.25

5/16

6MM

-

1.00

H-MTB^MM

11.93

0.47

6.00

0.24

6.35

0.25

7/16

8MM

-

1.00

H-MTB10MM

11.93

0.47

8.00

0.31

6.35

0.25

7/16

10MM

-

1.00

H-MTB-12MM

13.53

0.53

10.00

0.39

6.35

0.25

9/16

12MM

-

1.00
