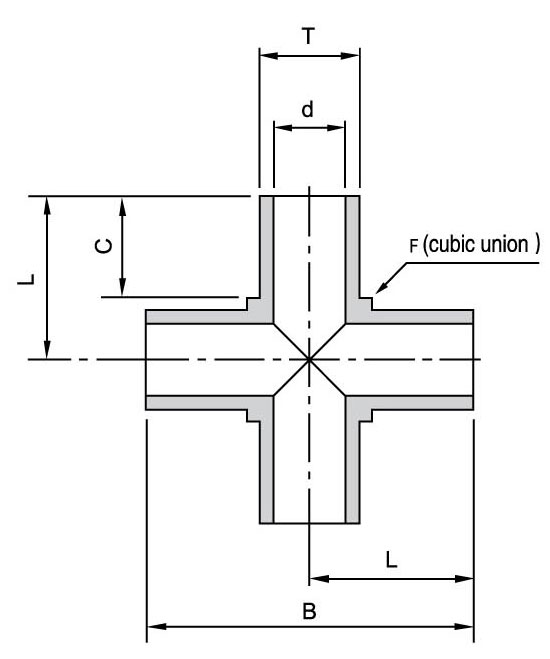

Tube fitting HMC-S

parts number

L

B

d

C

F

T

tube outside diameter

mm

inch

mm

inch

mm

inch

mm

inch

inch

inch/mm

mm

inch

H-MC-1/8

10.33

0.41

20.66

0.81

1.86

0.07

6.35

0.25

5/16

1/8"

-

0.028

H-MC-1/4

10.33

0.41

20.66

0.81

4.56

0.18

6.35

0.25

5/16

1/4"

-

0.035

H-MC-3/8

11.93

0.47

23.86

0.94

7.73

0.30

6.35

0.25

7/16

3/8"

-

0.035

H-MC-1/2

13.53

0.53

27.06

1.07

10.2

0.40

6.35

0.25

9/16

1/2"

-

0.049

H-MC-1/2-W.T.=0.065

13.53

0.53

27.06

1.07

9.46

0.37

6.35

0.25

9/16

1/2"

-

0.065

H-MC-3/4W.T =0.065

17.37

0.68

34.74

1.37

15.81

0.62

6.35

0.25

7/8

3/4

-

0.065

H-MC-1 W.T=0.065

19.83

0.78

39.66

1.56

22.16

0.87

6.35

0.25

1-1/16

1"

0.065

H-MC-6MM

10.33

0.41

20.66

0.81

4.00

0.16

6.35

0.25

5/16

6MM

1.00

-

H-MC-8MM

11.93

0.47

23.86

0.94

6.00

0.24

6.35

0.25

7/16

8MM

1.00

-

H-MC-10MM

11.93

0.47

23.86

0.94

8.00

0.31

6.35

0.25

7/16

10MM

1.00

-

H-MC-12MM

13.53

0.53

27.06

1.07

10.00

0.39

6.35

0.25

9/16

12MM

1.00

-
