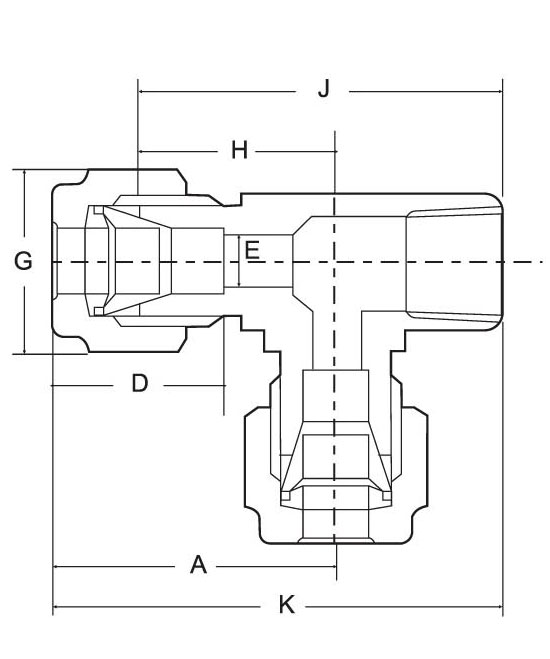

Tube fitting FRT-S

T

TUBE

O.D.

PT-NPT

MALE

PIPE SIZE

CATALOG

NUMBER

A

D

E

F

G

H

J

K

6

1/8

FRT-6-1

27.0

15.3

5

14

14

19.6

38.6

46.0

6

1/4

FRT-6-2

29.8

15.3

5

17

14

22.4

44.7

52.1

6

3/8

FRT-6-3

34.6

15.3

5

22

14

27.2

58.7

57.0

6

1/2

FRT-6-4

37.7

15.3

5

27

14

30.2

41.4

66.1

8

1/8

FRT-8-1

29.9

16.2

6

14

17

22.4

41.4

48.9

8

1/4

FRT-8-2

30.6

16.2

6

17

17

23.1

45.5

53.0

8

3/8

FRT-8-3

34.0

16.2

6

22

17

26.5

54.2

61.7

8

1/2

FRT-8-4

36.8

16.2

6

27

17

29.3

61.0

68.5

10

1/8

FRT-10-1

31.5

17.2

8

17

19

23.9

42.9

50.5

10

1/4

FRT-10-2

33.5

17.2

8

17

19

25.9

48.3

55.9

10

3/8

FRT-10-3

37.5

17.2

8

2

19

29.9

57.6

65.2

10

1/2

FRT-10-4

40.3

17.2

8

27

19

32.7

64.4

72.0

12

1/8

FRT-12-1

36.0

22.8

10

22

22

25.9

48.3

58.4

12

1/4

FRT-12-2

36.0

22.8

10

22

22

25.9

48.3

58.4

12

3/8

FRT-12-3

36.0

22.8

10

22

22

25.9

48.3

58.4

12

1/2

FRT-12-4

38.8

22.8

10

27

22

28.7

57.1

67.2

12

3/4

FRT-12-6

41.8

22.8

10

32

22

31.7

64.1

74.2

14

3/8

FRT-14-3

39.8

24.4

10

27

27

29.7

55.1

65.2

14

1/2

FRT-14-4

39.8

24.4

10

27

27

29.7

58.1

68.2

14

3/4

FRT-14-6

42.8

24.4

10

32

27

32.7

65.1

75.2

15

3/8

FRT-15-3

39.8

24.4

11

27

27

29.7

55.1

65.2

15

1/2

FRT-15-4

39.8

24.4

11

27

27

29.7

58.1

68.2

15

3/4

FRT-15-6

42.8

24.4

11

32

27

32.7

65.1

75.2

16

3/8

FRT-16-3

39.8

24.4

12

27

27

29.7

55.1

65.2

16

1/2

FRT-16-4

39.8

24.4

12

27

27

29.7

58.1

65.2

16

3/4

FRT-16-6

42.8

24.4

12

32

27

32.7

65.1

75.2

18

3/8

FRT-18-3

40.5

24.4

14

27

30

30.4

55.8

65.9

18

1/2

FRT-18-4

40.5

24.4

14

27

30

30.4

58.8

68.9

18

3/4

FRT-18-6

43.5

24.4

14

32

30

33.4

65.8

75.9

20

1/2

FRT-20-4

43.5

26.0

16

32

32

33.4

64.8

74.9

20

3/4

FRT-20-6

46.5

26.0

16

32

32

36.4

71.8

81.9

22

1/2

FRT-22-4

43.5

26.0

18

32

32

33.4

64.8

74.9

22

3/4

FRT-22-6

46.5

26.0

18

32

32

36.4

71.8

81.9

25

1/2

FRT-25-4

47.5

31.3

21

34

38

35.2

68.6

80.9

25

3/4

FRT-25-6

50.5

31.3

21

34

38

38.2

75.6

87.9

1/4

1/8

FRT-02-1

27.0

15.2

5

14

14

19.6

38.6

46.0

1/4

1/4

FRT-02-2

29.8

15.2

5

17

14

22.4

44.7

52.1

1/4

3/8

FRT-02-3

34.6

15.2

5

22

14

27.2

49.6

57.0

1/4

1/2

FRT-02-4

37.7

15.2

5

27

14

30.2

58.7

66.1

3/8

1/8

FRT-03-1

30.5

16.8

7

17

17

23.1

42.9

50.3

3/8

1/4

FRT-03-2

31.2

16.8

7

17

17

24.0

46.4

53.6

3/8

3/8

FRT-03-3

33.3

16.8

7

22

17

26.0

48.4

55.7

3/8

1/2

FRT-03-4

36.1

16.8

7

27

17

28.7

57.1

64.2

1/2

1/8

FRT-04-1

36.0

22.8

10

22

22

25.9

48.3

58.4

1/2

1/4

FRT-04-2

36.0

22.8

10

22

22

25.9

48.3

57.4

1/2

3/8

FRT-04-3

36.0

22.8

10

22

22

26.0

48.3

58.4

1/2

1/2

FRT-04-4

38.8

22.8

10

27

22

28.7

57.1

67.2

1/2

3/4

FRT-04-6

41.8

22.8

10

32

22

31.7

64.1

74.2

3/4

1/2

FRT-06-4

39.9

24.4

15

27

30

29.7

51.8

68.3

3/4

3/4

FRT-06-6

44.7

24.4

15

32

30

34.5

66.2

76.4

1

3/4

FRT-08-6

50.5

31.3

21

34

38

38.2

75.6

87.9
