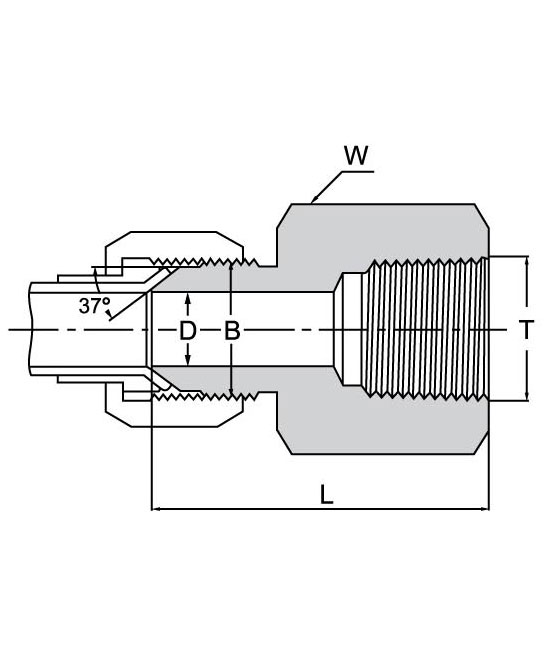

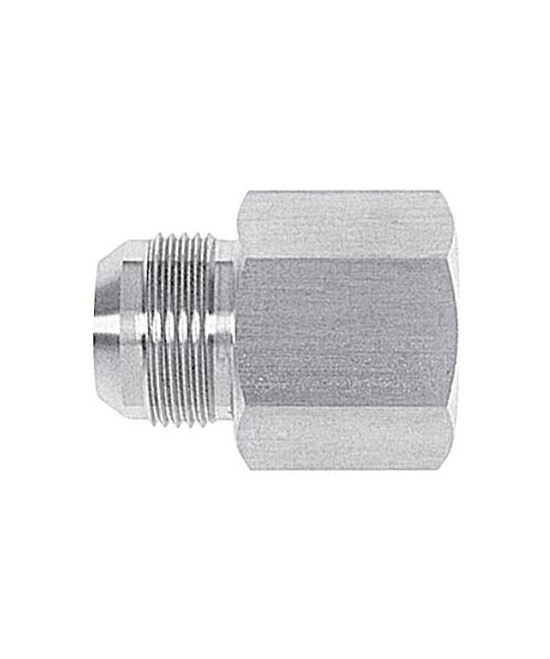

Tube fitting FCH-S

tube outside inch

B

UNF

T

NPT/PT

D

W

inch

L

FCH-1/8

-

5/16-24

1/8

0.062

1.6

9/16

1.12

28.4

FCH-3/16

-

3/8-24

1/8

0.125

3.2

9/16

1.13

28.7

FCH-1/4

6

7/16-20

1/8

0.172

4.4

9/16

1.19

30.2

FCH-1/4

6

7/16-20

1/4

0.172

4.4

3/4

1.39

35.3

FCH-5/16

8

1/2-20

1/8

0.234

6.0

9/16

1.17

29.7

FCH-5/16

8

1/2-20

1/4

0.234

6.0

3/4

1.39

35.3

FCH-3/8

10

9/16-18

1/4

0.297

7.5

3/4

1.40

35.6

FCH-3/8

10

9/16-18

3/8

0.297

7.5

7/8

1.46

37.1

FCH-1/2

12

3/4-16

3/8

0.391

9.9

7/8

1.56

39.6

FCH-1/2

12

3/4-16

1/2

0.391

9.9

1-1/8

1.79

45.6

FCH-5/8

16

7/8-14

1/2

0.484

12.3

1-1/8

1.89

48.0

FCH-3/4

18

1-1/16-12

1/2

0.609

15.5

1-1/8

2.05

52.1

FCH-3/4

18

1-1/16-12

3/4

0.609

15.5

1-3/8

2.06

52.3

FCH-7/8

20

1-3/16-12

3/4

0.719

18.3

1-3/8

2.06

52.3

FCH-1

25

1-5/16-12

1

0.844

21.5

1-5/8

2.35

59.7

FCH-1-1/4

32

1-5/8-12

1-1/4

1.078

27.5

2

2.49

63.2

FCH-1-1/2

38

1-7/8-12

1-1/2

1.312

33.0

2-3/8

2.62

66.5

FCH-2

2-1/2-12

2

1.781

45.0

2-7/8

2.97

75.4
