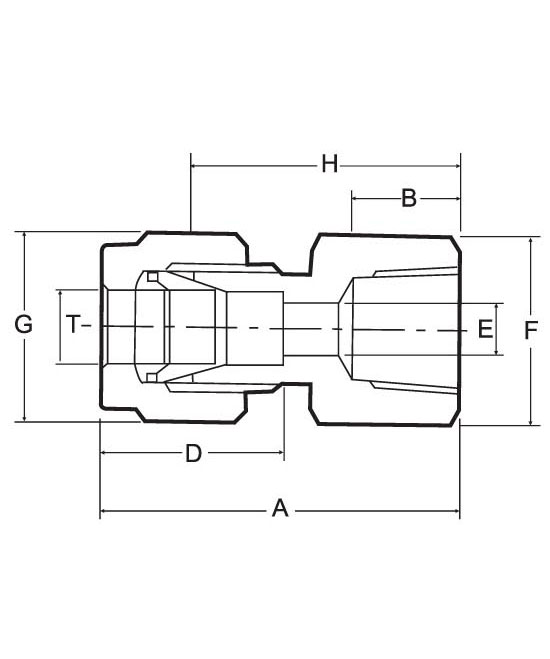

Tube fitting FC-S

T

TUBE

O.D.

PT-NPT

FEMALE

PIPE

SIZE

CATALOG

NUMBER

A

B

D

E

F

G

H

4

1/8

FC-4-1

29.7

12

13.7

3

14

12

23.1

6

1/8

FC-6-1

31.3

12

15.3

5

14

14

23.9

6

1/4

FC-6-2

35.8

15

15.3

5

17

14

28.4

6

3/8

FC-6-3

37.6

15

15.3

5

22

14

30.2

6

1/2

FC-6-4

42.5

20

15.3

5

27

14

35.1

8

1/8

FC-8-1

32.1

12

16.2

5

14

17

24.6

8

1/4

FC-8-2

37.0

15

16.2

6

17

17

29.5

8

3/8

FC-8-3

38.5

15

16.2

6

22

17

31.0

8

1/2

FC-8-4

43.3

20

16.2

6

27

17

35.8

10

1/8

FC-10-1

34.8

12

17.2

5

19

19

27.2

10

1/4

FC-10-2

37.8

15

17.2

6

19

19

30.2

10

3/8

FC-10-3

39.4

15

17.2

8

22

19

31.8

10

1/2

FC-10-4

44.2

20

17.2

8

27

19

36.8

12

1/8

FC-12-1

37.3

12

22.8

5

22

22

27.2

12

1/4

FC-12-2

40.3

15

22.8

6

22

22

30.2

12

3/8

FC-12-3

41.9

15

22.8

8

22

22

31.8

12

1/2

FC-12-4

46.7

20

22.8

10

27

22

36.6

12

3/4

FC-12-6

48.3

21

22.8

10

32

22

38.2

12

1

FC-12-8

51.3

24

22.8

10

40

22

41.2

14

3/8

FC-14-3

41.9

15

24.4

8

27

27

31.8

14

1/2

FC-14-4

46.7

20

24.4

10

27

27

36.6

14

3/4

FC-14-6

48.3

21

24.4

10

32

27

38.2

15

3/8

FC-15-3

41.9

15

24.4

8

27

27

31.8

15

1/2

FC-15-4

46.7

20

24.4

10

27

27

36.6

15

3/4

FC-15-6

48.3

21

24.4

10

32

27

38.2

16

3/8

FC-16-3

42.1

15

24.4

8

27

27

32.0

16

1/2

FC-16-4

46.9

20

24.4

10

27

27

36.8

16

3/4

FC-16-6

48.5

21

24.4

12

32

27

38.4

18

3/8

FC-18-3

42.1

15

24.4

14

27

30

32.0

18

1/2

FC-18-4

46.9

20

24.4

14

27

30

36.8

18

3/4

FC-18-6

48.2

21

24.4

14

32

30

38.4

20

1/2

FC-20-4

47.9

20

26.0

16

30

32

37.8

20

3/4

FC-20-6

49.7

21

26.0

16

32

32

39.6

22

1/2

FC-22-4

47.9

20

26.0

18

30

32

37.8

22

3/4

FC-22-6

49.7

21

26.0

18

32

32

39.6

22

1

FC-22-8

57.9

24

26.0

18

40

32

47.8

25

3/4

FC-25-6

53.4

21

31.3

21

35

38

41.1

25

1

FC-25-8

62.3

24

31.3

21

40

38

50.0

1/8

1/8

FC-01-1

28.7

12

12.7

2

14

10

22.1

1/8

1/4

FC-01-2

33.5

15

12.7

2

17

10

27.0

1/4

1/8

FC-02-1

31.2

12

15.3

5

14

14

24.0

1/4

1/4

FC-02-2

35.8

15

15.3

5

17

14

28.4

1/4

3/8

FC-02-3

37.6

15

15.3

5

22

14

30.2

1/4

1/2

FC-024

42.4

20

15.3

5

27

14

35.1

3/8

1/8

FC-03-1

32.8

12

16.8

5

17

19

25.4

3/8

1/4

FC-03-2

37.6

15

16.8

6

17

19

30.2

3/8

3/8

FC-03-3

39.1

15

16.8

8

22

19

31.8

3/8

1/2

FC-03-4

43.9

20

16.8

8

27

19

36.6

3/8

3/4

FC-03-6

47.8

21

16.8

8

32

19

40.4

1/2

1/8

FC-04-1

37.3

12

22.8

5

22

22

27.2

1/2

1/4

FC-04-2

40.4

15

22.8

6

22

22

30.2

1/2

3/8

FC-04-3

42.0

15

22.8

8

22

22

31.8

1/2

1/2

FC-04-4

46.7

20

22.8

10

27

22

36.6

1/2

3/4

FC-04-6

48.3

21

22.8

10

32

22

38.2

1/2

1

FC-04-8

51.3

24

22.8

10

40

22

41.2

5/8

3/8

FC-05-3

42.1

15

24.4

8

27

27

32.0

5/8

1/2

FC-05-4

46.9

20

24.4

11

27

27

36.8

5/8

3/4

FC-05-6

48.5

21

24.4

12

32

27

38.4

3/4

1/2

FC-064

46.7

20

24.4

15

27

30

36.6

3/4

3/4

FC-06-6

48.3

21

24.4

15

32

30

38.1

1

3/4

FC-08-6

53.3

21

31.3

21

35

38

41.1

1

1

FC-08-8

62.2

24

31.3

21

40

38

50.0
