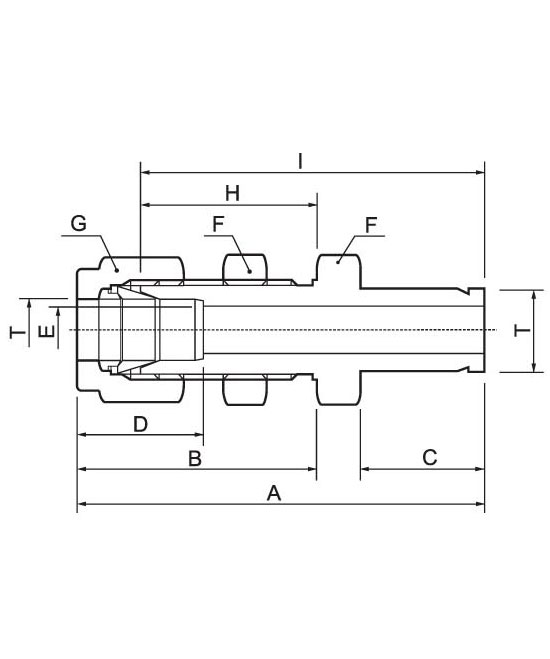

Tube fitting BODTA-S

TUBE

O.D.

CATALOG

NUMBER

A

B

C

D

E

F

G

H

I

PANEL

HOLE

DRILL

MAX

PANEL

THICK

1/8

BODTA-01-01

49.53

31.24

13.45

12.70

2.03

12.70

11.11

24.63

42.92

8.33

12.70

1/4

BODTA-02-02

55.88

33.52

15.74

15.24

4.82

15.87

14.28

26.16

48.51

11.50

10.16

3/8

BODTA-03-03

61.21

36.83

17.50

16.76

7.11

19.05

17.46

29.46

53.84

14.68

11.17

1/2

BODTA-04-04

72.89

41.91

23.11

22.86

10.41

23.81

22.22

31.75

62.73

19.44

12.70

5/8

BODTA-05-05

75.18

42.67

24.70

24.38

12.70 26.98

25.40

32.51

65.02

22.62

12.70

1

BODTA-08-08

100.33 57.40

31.70

31.24

20.32

41.28

38.10

45.21

88.13

33.73

19.05
