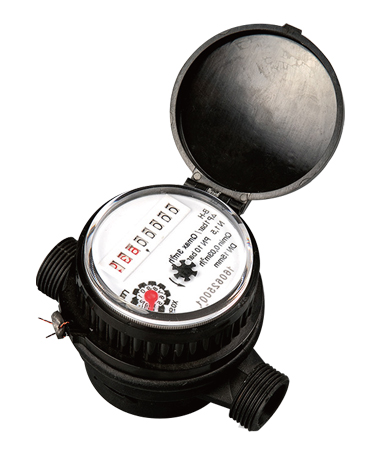

Single Jet Dry Type (Remote Reading) Water Meter

Single Jet Dry Type (Remote Reading) Water Meter

Application
Measuring the total volumeof cold potable water passingthrough the pipeline.
Working condition
Water temperature:
0.1'C-50°Cfor cold water meter.0.1°C-90’C for hot water meter.Water pressure :≤1.0Mpa
Compliance with standard
IS04064GB/T778.1-1996)
1S04064GB/T778.1-2007)
Maximum permissible error
in the lower zone from Qmin{Q1) inclusive up to but excluding Qt(Q2) is ±5%in the upper zone from Qt(Q2) inclusive up to and including Qs(Q4) is ±296.(Hot water meter ±3%)
FEATURE
Dry type, small, light, magnetic drive, free rotating register, easy and long term clear reading ect, Magnet resistanceTechnical data conform to international standard IS04064 Class B , R80.
Data Output Options: 10 L/Pulse,100 L/Pulse,or 1000 L/Pulse.
