1940 Gauge Isolator Manometer Isolator needle valve

Specification:

Body:Forged carbon steel or 316 stainless steel body in high resistance, accurate heat treated，　for steel body, it is nickel plated or zinc-nickel plated

Needle: Carbon steel or 316 stainless steel

Gasket: NBR or FPM

Handwheel: Nylon 66

Anti-extrusion ring: PTFE

Panel mounting: available

Working pressure: 400bar

Working temperature:-20+130⁰C

For tapered thread, please add copper sealing

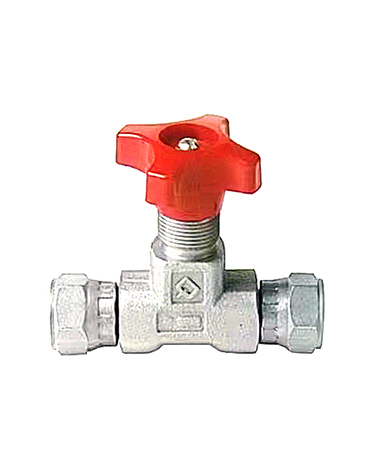

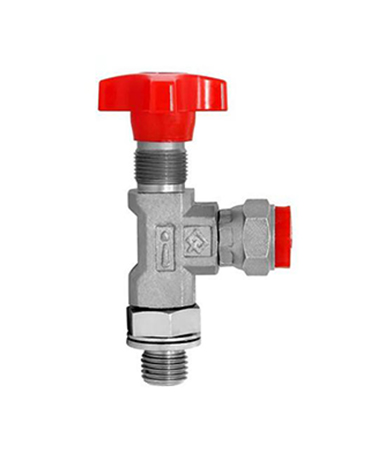

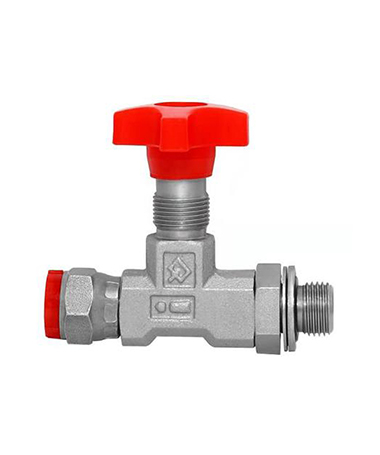

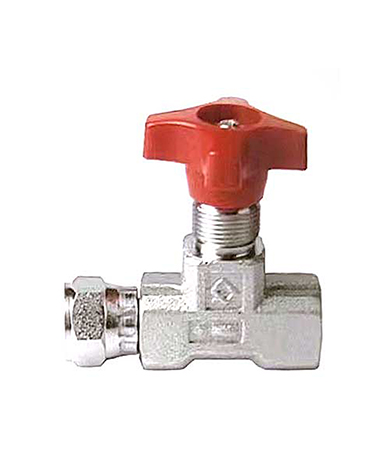

Design: In line 180⁰ or 90⁰ angled

Instrument connection: rotating swivel nut female thread, 1/4”NPT, 1/4”BSP, 1/4”BSPT, M14 x 1.5” etc

Process connection thread: 1/4”NPT, 1/4”BSP, 1/4”BSPT, M14 x 1.5”, 1/4”JIC, etc

Process connection thread type: fixed male, fixed female, rotating swivel nut female, adjustable direction with locking nut
